7 Different Types of Ton Bag Discharge: Everything You Need to Know

Flexible Intermediate Bulk Containers Tote BagsIt is a bulk bag made of flexible woven material, usually can hold500 kg to 2,000 kg of flowable product. There are several different big bag construction methods and big bag discharge types to consider, depending on your application.

How many types of bulk bag unloading are there?

Bulk bags are used in industries such as food production, chemical handling, building, construction and mining operations. In this article, we look at the seven main types of bulk bag discharge available today.

Keep in mind that there are a variety of bulk bag unloading methods. Some companies use forklifts, pneumatic or screw conveyors, fixed frames, dedicated unloading stations, or cranes to empty theirBig bags. Choose the best Emission methodand requiredof Big bag typeWill depend on the material handling technology used in your organization.

What are the different types of bulk bag discharge?

As ton bag users are looking for ways to improve every day Uninstall the product, so there are custom bags available to handle almost any situation.

You can combine different bulk bag discharge types with Combination of multiple protection methods.Dust-freeTon BagDepending on your needs, you can use a conical discharge bag outlet or a flat bottom.

The seven main types of bulk bag unloading are:

·

flat

·

·

Discharge port

·

·

Conical discharge port

·

·

Drain port with flap

·

·

Tweed bottom

·

·

Diaper bottom

·

·

Aperture Closed

·

Here's what you need to know about the most common Ton bag construction typeand emission method information:

Flat bottom (no spout)

Flat bottom bulk bags without spouts (also called flat bottom or flat bottom bulk bags) are an economical option but can only be used once. To discharge the product you need to cut the bottom.

These ton bagsTypically used in operations where discharge is not part of the process, or where you need to discharge quickly without reusing the bag.

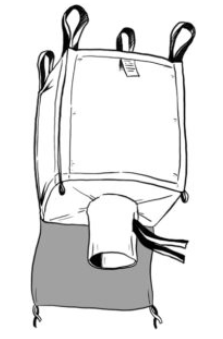

Unloading port ton bag

Big bags with discharge portsIdeal for situations where re-use of bulk bags is required. The discharge spout is part of the bag structure and does not damage the bag during discharge.

The size of the feed opening is in diameter30cm to 50cm in length, but you can easily adjust the size to suit your needs. Big bags with discharge spouts are the most popular in the industry.

Conical discharge port

The tapered discharge port helps when you want to ensure the entire bag is emptied of product.Ton BagA common problem is that material will accumulate in the corners of the bag.

For standard bag discharge type, user needs to shakeTon BagThe conical discharge spout allows material to flow easily from the bottom of the bulk bag without any remaining product getting stuck in corners.

Drain port with flap

To protect the nozzle from moisture, you can choose a discharge nozzle with a flap. The flap is made of tough fabric and is attached to the bottom of the bag and then secured with a strap to prevent dust from accumulating.

The flap fits the same size as the big bag and acts as an access door to the nozzle. When contamination is a concern,Use baffleProtect the drainis the best choice.

Sichuan Feixiang Ton Bag FactoryDischarge type

The tweed bottom allows you to quickly and easily access all the contents of the bag. Used primarily for bulk materials, the entire bottom of the bag opens to release products that do not flow easily or that have clumped together over time.

You can secure the bottom of the bag with polypropylene ties, which may include perimeter closures, to secure the product during shipping and storage. Some bag bottom bulk bags also use a flap to protect the bag until it is unloaded.

Diaper bottomFIBC Discharge

Sometimes called a full drop bottom, a diaper bottom ton bag uses a flat piece of fabric attached to theTon BagYou can tie the flap to the other side of the bag so you can loosen the entire bottom to drain the contents.

If you want aTon BagA simple drainage solution that requires just cutting the bag open, the Diaper Bottom Tote Bag is your ideal choice.

Iris closure and dischargeTon Bag

The iris bottom provides you with a way to control the flow of material using an iris valve when you do not need a secure connection. The discharge nozzle is pulled through the valve, which then secures around the nozzle.

Once you gradually open the valve, the material will begin to discharge and you can prevent any uncontrolled explosions, limiting the spread of dust through your plant areas during product flow.

Our conclusions on big bag discharge port types

For any type of product that can flow Big bag handling, you can find the type of discharge that suits your needs.

Even if the above types do not meet your exact requirements,Also availableCustom exhaust designsto ensure you can safelyTransport, storage and dischargeproduct.
